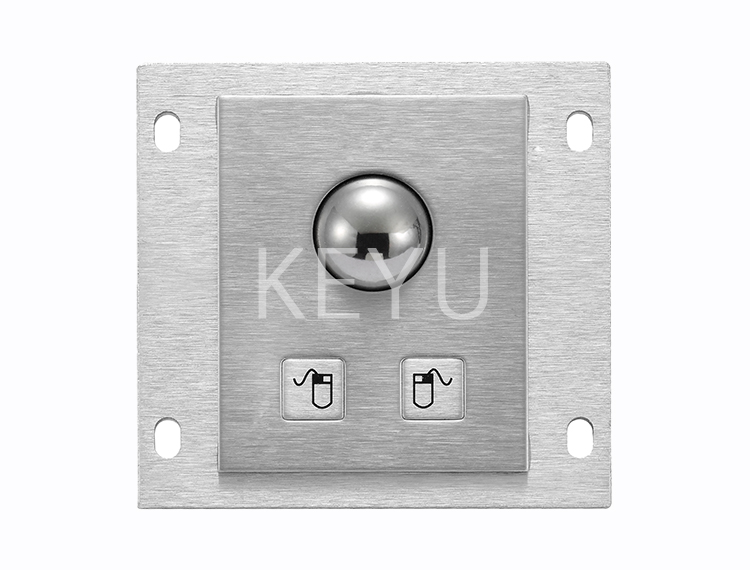

KY-TB-25
Dimension ：
- Front Panel: 59.6*73.6 mm
- Overall : 91.4*87.4 mm
- Trackball Size: 25mm
Feature:
- Patent product, high resolution trackball
- Resistant to dirt, dust and liquid
- Very rugged vandal proof design
- Mounting kit and Desktop kit optional
- Front Panel :304 stainless steel
- Trackball and keys: 304 stainless steel
- Back panel: Aluminum
- Voltage: 5.0VDC+_5%
- EMC Emission : EN55022(B)
- Resolution: above 800dpi
Ultrasound Ergonomic 25mm USB Trackball Mouse USB Connector For Medical / Marine Region
Mechanical / Electrical Data:
| Power Supply | 5V±5% |
| Working Current | <100mA |
| Durability | >2Million |
| Interface | PS/2 or USB |
| Compatible With System | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key Size | 12mm*12mm |
| Key Trip | 0.45mm |
| Operation Force | 2N ± 10% |
| Mounting Way | Rear mounting |
| Net Weight | 0.41KG |
| Gross Weight | 0.45KG |
| Operating Temperature | -10℃~50℃（Relative Humidity 20%~85% / Atmospheric Pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative Humidity 20%~90% / Atmospheric Pressure 60~106Kpa） |
Applications: industrial equipment, library ,kiosks, vending machine, self-service terminal,Etc
