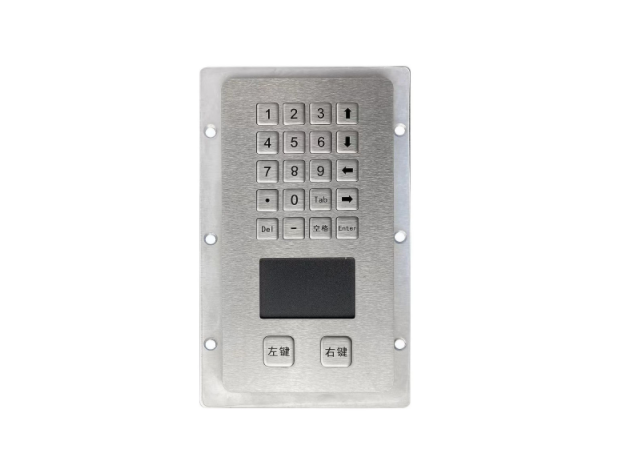

keyboard touchpad mouse KY3178A
This keyboard touchpad mouse has 22 keys and It is widely applied to various unmanned-regulated mechanical equipment or information terminals, such as :bank self-service deposit and withdrawal machines, telecommunications, self-service form printing and query machines, self-service terminals, public information query devices, automated monitoring, security equipment, mine safety detection, industrial PC numerical control platforms, instrument testing equipment, self-payment machines, fixed offshore platforms, industrial explosion-proof equipment, military control consoles, coal mine equipment, metallurgy, power, transportation, and other special requirements industrial control industries.
keyboard touchpad mouse main features：
The panel is made of high-quality SUS304 brushed stainless steel, which is explosion-proof and corrosion-resistant.
SUS304 brushed stainless steel buttons (the characters are black and can be laser-etched)
The printed (etched) content of the buttons can be customized according to customer requirements.
keyboard touchpad mouse specification parameter：
| Power supply | 5V±5% |
| Working curren | <150mA |
| Durability | >2 million |
| Interface | USB |
| Compatible systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key size | 10*10*2.0mm / 14*14*2.0mm |
| Key trip | 0.45mm |
| Operation force | 2N+/-0.1N（Apply force to the contact point） |
| Mounting way | Rare mounting |
| Net weight | 0.4Kg |
| Gross weight | 0.55Kg |
| Operation temperature | -20℃~65℃（Relative humidity 20%~85% / Atmospheric Pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric Pressure 60~106Kpa） |
| MTBF | >20000 hour |
| MTTR | <30 minute |
