KY-PC-N-DESK
Dimension ：
- Front Panel: 416*145 mm
- Overall :416*145*45.8 mm
Main feature:
- The panel adopts high quality SUS304 stainless steel, anti-riot and anti-corrosion.
- SUS304Stainless steel keys.
- Desktop keyboard
- Supports keyboard layouts in various countries（Customizedaccording to the customer’s needs）.
- Customizedfunction keys or combination keys are available.
Product description:

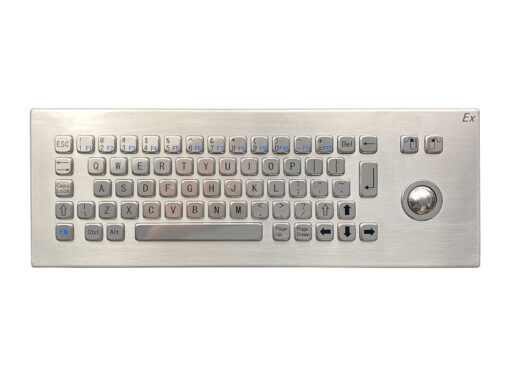

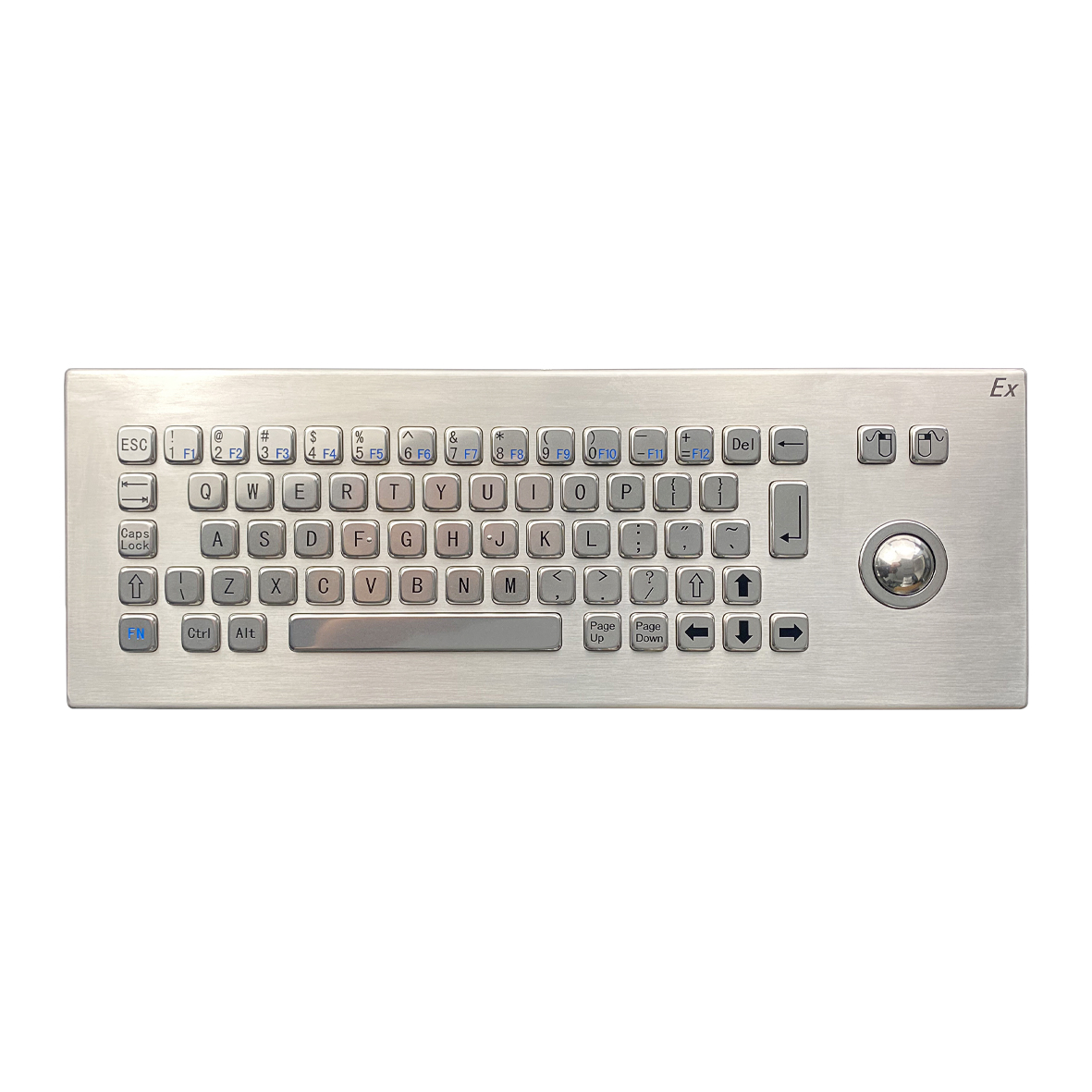

The product KY-PC-N-DESK has a total of 66 buttons and is equipped with a trackball mouse function. It is a desktop device, widely used in the fields of financial equipment, communication equipment, military equipment, and a series of self-service terminal equipment.
Mechanical / Electrical Data：
| Power supply
|
5V±5% |
| Working
current
|
<100mA |
| Durability
|
>2 millions times |
| Interface
|
USB / PS/2 |
| Compatible
with systems
|
Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key size
|
14*14*4.5/28*14*4.5/100*14*4.5mm |
| Key trip
|
1.5mm |
| Operation force
|
1.2N+/-0.1N（Contact force） |
| Mounting way
|
Desktop |
| Net weight
|
1.8Kg |
| Gross weight
|
1.95Kg |
| Working temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
