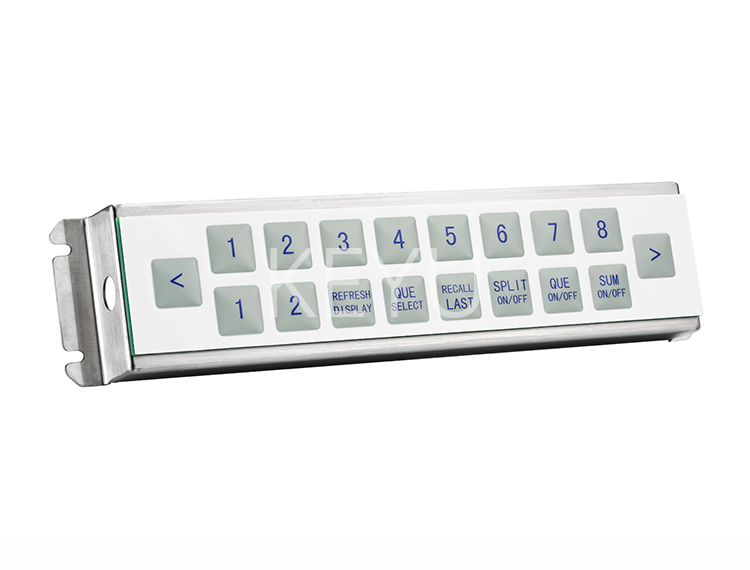

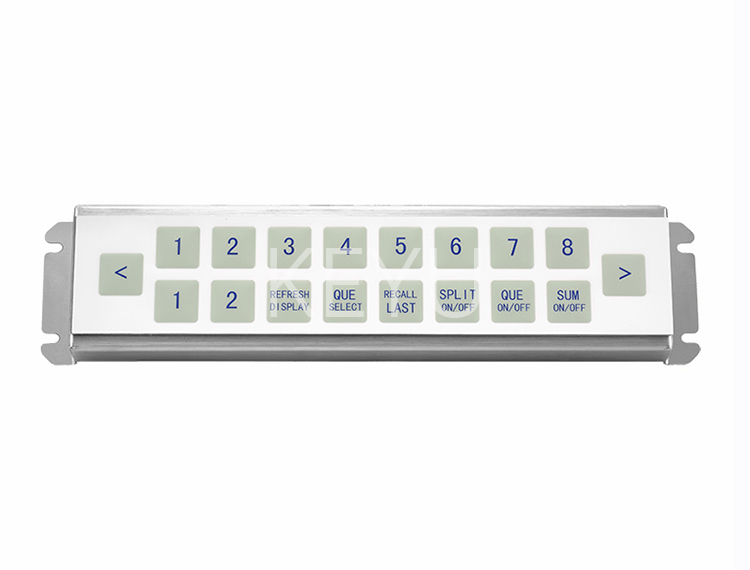

KY2060B
Dimension ：
- Front Panel: 240*60 mm
- Overall : 266*60 mm
Feature:
- Resistant to dirt, dust and liquid
- Very thin metal panel design
- Can be cleaned with soapy water, disinfectant or other cleaning agents
- USB、PS/2、RS232、TTL、RS485 interface available
Mechanical / Electrical Data:
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Operation Force | 220g±20g |
| Durability | ≥ 2Million |
| Packing Dim | 160*160*60mm |
| Mounting Way | Rear mounting or Front mounting |
| Operating Temperature | -20℃~55℃（Relative humidity20%~85%/ Atmospheric pressure60~106Kpa） |
| Compatible With Systems | Window XP、Window 7、Window 8、Linux、Ubuntu、Android |
| Approvals | ROHS、IP65、FCC、CE |
Applications: Ticket Vending Machine,, Parking Solution,Kiosk solution, medical equipment, industrial facilities, prisons, food service, oil fields, Etc
