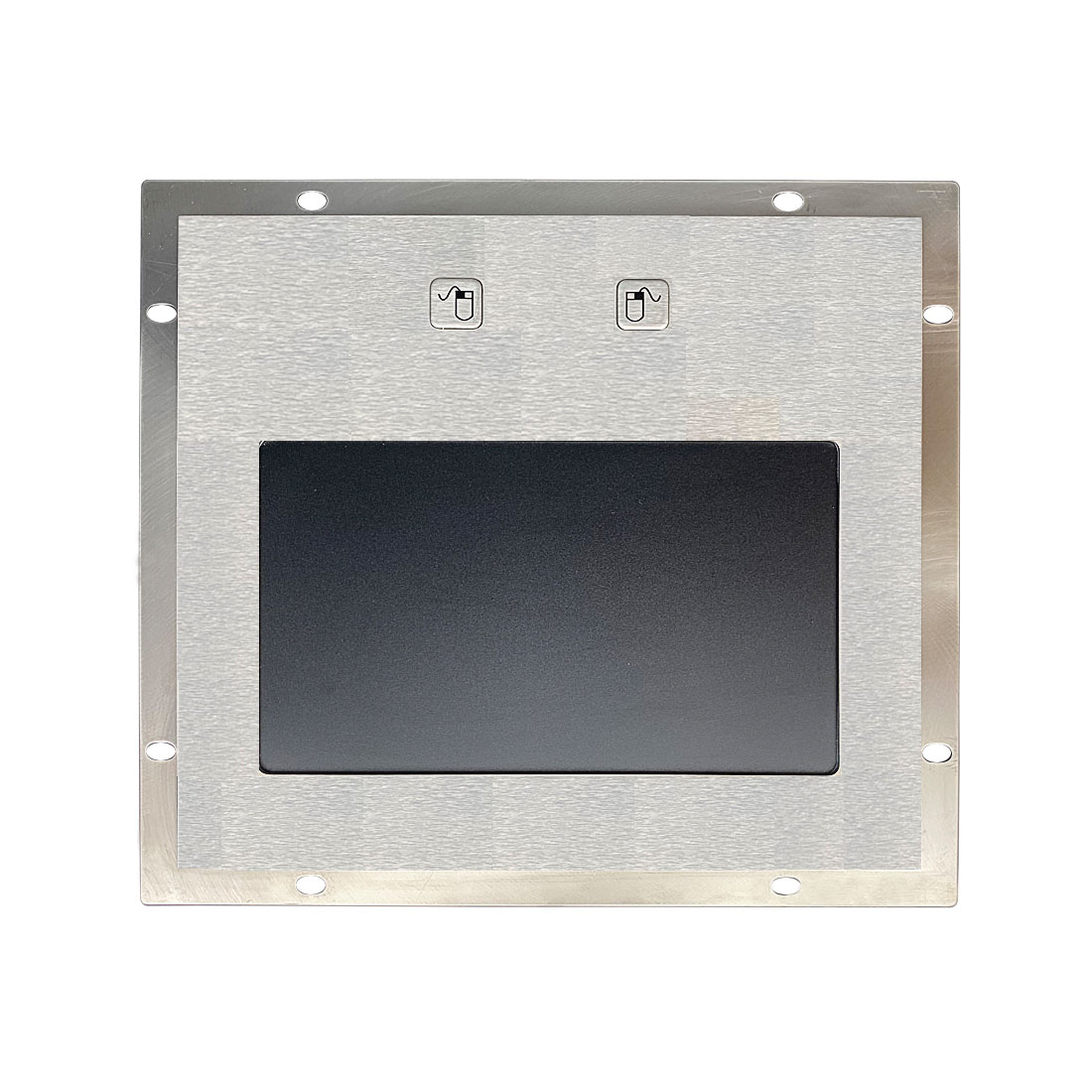

Durable IP65 trackpad external KY-TB-A160
Product Name: Metal trackpad external
Trackpad external main features:
- The panel is made of high-quality SUS304 brushed stainless steel, which is explosion-proof and anti-corrosive.
- SUS304 brushed stainless steel keys (Laser etching can be done when the characters are black)
- It can be positioned quickly and reliably, and the operation is flexible and convenient
Trackpad external product overview:
The trackpad external uses a metal spring to conduct electricity to achieve mouse function input, and touch movement to position the cursor. There are a total of 2 function keys. It is widely applied in fields such as self-service vending machines, self-service information kiosks, intelligent storage express lockers, industrial control equipment, and military equipment.
Trackpad external mechanical / electrical data：
| Power supply | 5V±5% |
| Working current | <100mA |
| Durability | >2 million |
| Interface | PS/2 Or USB |
| Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key size | 14mm*14mm*2mm |
| Key trip | 0.45mm |
| Operation force | 3N ± 10% |
| Mounting way | From the bottom up, the bottom plate is fixed |
| Net weight | 1.1Kg |
| Gross weight | 1.3Kg |
| Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
