Industrial usb key pad
12 keys industrial numeric usb key pad feature:
Dimension ：
Front Panel: 82.5*103.5 mm
Overall : 82.5*103.5 mm
12 keys industrial numeric usb key pad features:
Stainless Steel Buttons
Compact layout, customized for free
Laser or etching procedure for key labeling optional
Durability≥2 million
Rugged stainless steel industrial numeric keypad.
IP65 waterproof & vandal-proof, panel mount design, support USB ,Other interfaces are customizable,used for kiosk & access control.

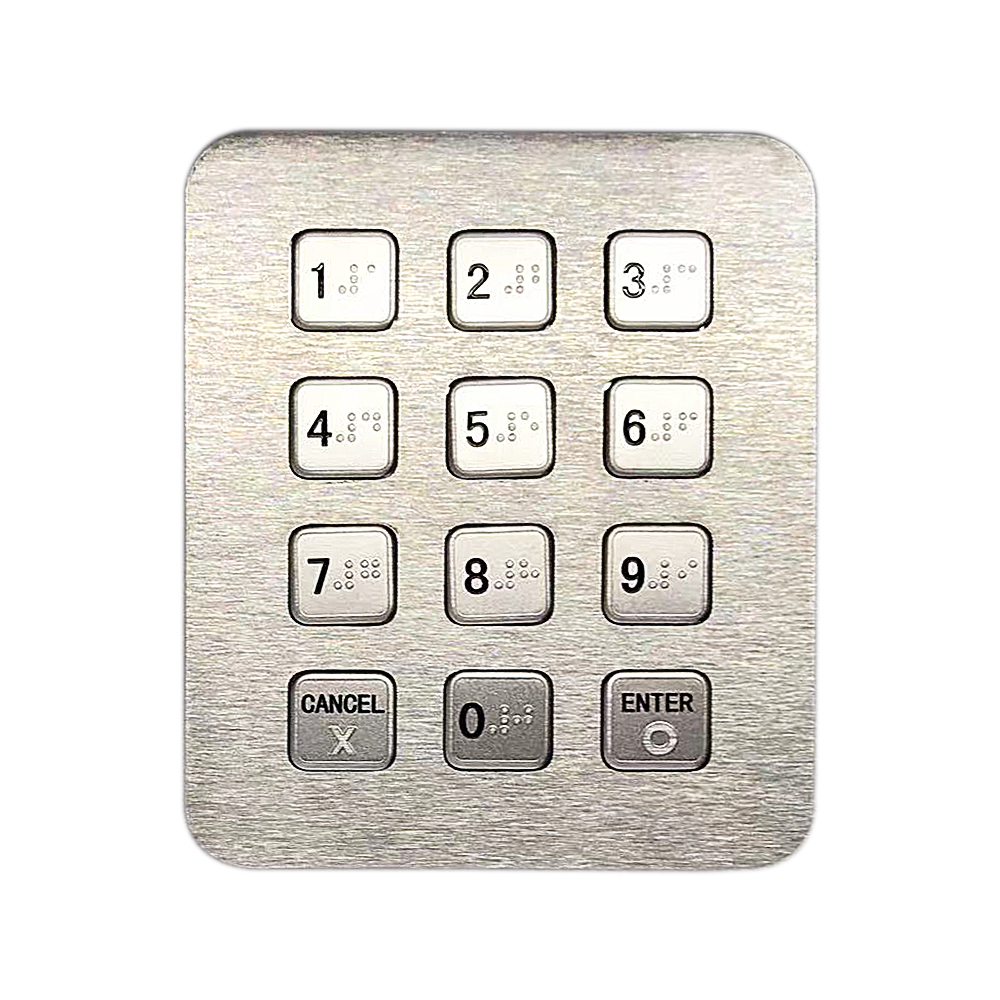

Industrial usb key pad model:KY2073C-USB
12 keys industrial usb key pad feature:
- Industrial numeric keypad made of 304 stainless steel, sturdy & anti-damage
- IP65 waterproof, dustproof, anti-corrosion for harsh working environment
- Panel mount installation, stable input, 2,000,000+ keystroke lifetime
- Available USB, RS232, RS485 interface, OEM key layout customization
- Widely used in kiosk, access control, vending machine, industrial terminal
Industrial numeric usb key pad Application:
Access control & door entry systems
Self-service payment kiosks
Vending machines & car wash equipment
Fuel dispensers & parking terminals
Industrial control cabinets & machine operation panels
Banking, medical & public outdoor terminal devices
12 Keys Industrial usb key pad mechanical/electrical data：
| Power Supply | 5V±5% |
| Working Current | <70mA |
| Durability | >200万次 |
| Interface | USB |
| Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Size | 14*14*1.5mm |
| Key Trip | 0.45mm |
| Operation Force | 3N ± 10% |
| Mounting Way | Rear mounting |
| Net weight | 0.3Kg |
| Gross weight | 0.35Kg |
| Operating Temperature | -20℃~60℃（Relative Humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative Humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
| Connecting cables | 2.5m USB cable (Type A) |
Usb key pad key value table：
| The Key | HID Usage ID | The Key | HID Usage ID |
| 1 | 1E | 7 | 24 |
| 2 | 1F | 8 | 25 |
| 3 | 20 | 9 | 26 |
| 4 | 21 | 0 | 27 |
| 5 | 22 | CANCEL | 29 |
| 6 | 23 | ENTER | 28 |
