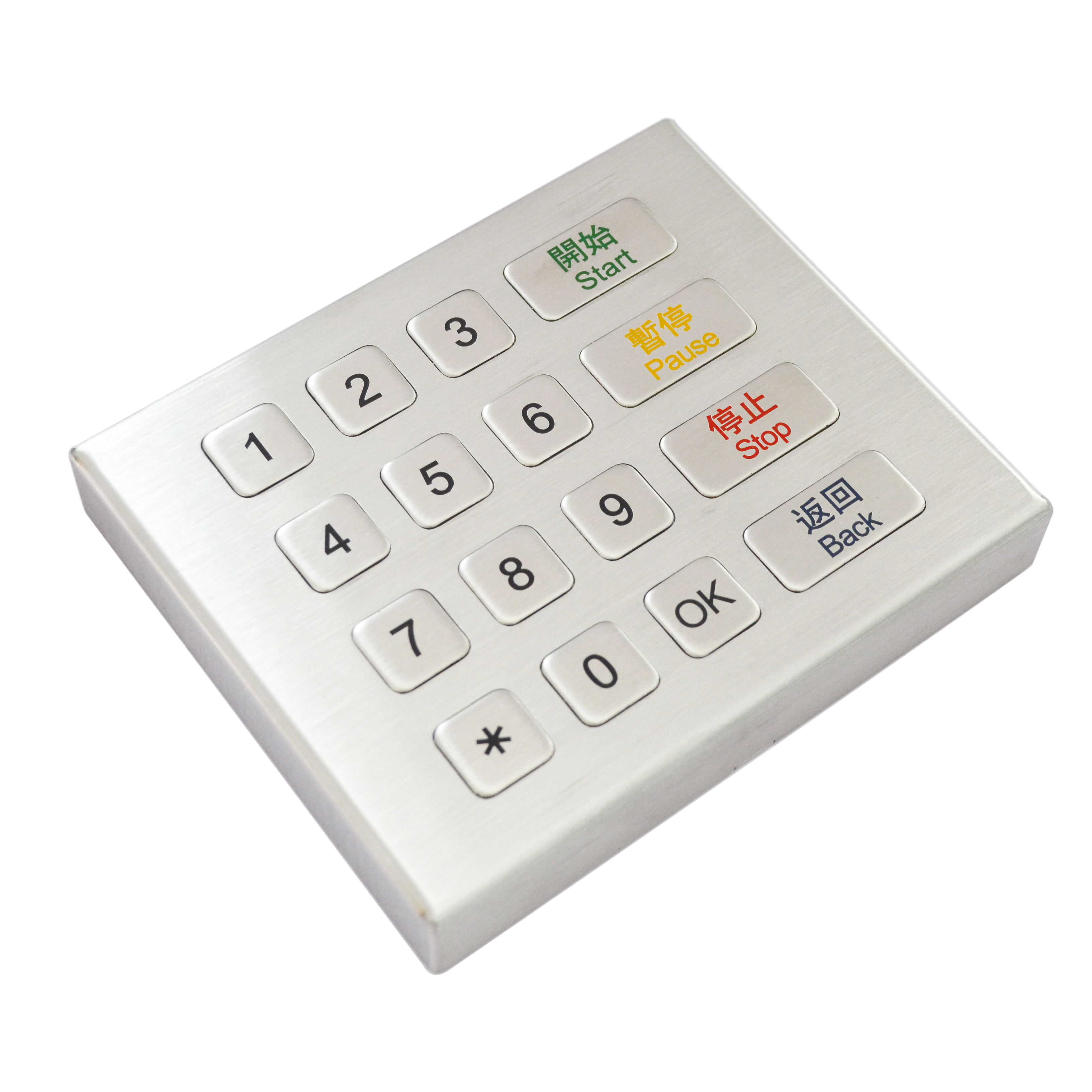

Metal desktop keypad model: KY-2088A-DESK

Metal desktop keypad Overview:

16 key compact layout, covering numbers and commonly used function keys, meeting the needs of efficient data entry. Precision metal contact design, with crisp rebound and clear tactile sensation, supporting long-term high-frequency use.

Industrial grade protection, stable and reliable, is the professional choice for self-service terminals, industrial consoles, and desktop workstations.

The product has a total of 16 buttons and is an embedded device widely used in the fields of financial equipment, communication equipment, military equipment, and a series of self-service terminal devices.

Metal desktop keypad Key Features:

The panel is made of high-quality SUS304 brushed stainless steel, which is explosion-proof and corrosion-resistant
SUS304 brushed stainless steel button (laser etched when characters are black)
Button silk screen printing (etching) content can be cus

Metal desktop keypadSpecifications:

Working voltage:        5V ± 5%
Working current:        <150mA
Service life:           >2 million times
The product interface   supports USB/PS/2/RS232
Operating systems:      Windows XP, Windows 7, Windows 8, Windows 10, Linux, Ubuntu, Android
Key size:               Normal key: 14 * 14 * 1.5mm Function key: 28 * 14 * 1.5mm
Button stroke:          0.45mm
Button force:           3N ± 10%
Installation method:    from top to bottom, panel fixed assembly
Net weight of product:  0.35KG
Product gross weight:   0.4KG
Working temperature:   -20 ℃~45 ℃
Storage temperature:   -30 ℃~85 ℃
