The IK08 vandal-resistant keyboard features an integrated design, combining a full-function keypad with a sealed touchpad. Constructed from brushed SUS304 stainless steel, this rugged unit offers an IP65-rated front panel, providing excellent protection against water and dust. Designed for rear-panel mounting, it is widely used in self-service kiosks, ATMs, medical terminals, industrial control cabinets, and various public-facing self-service equipment. It supports USB and PS2 interfaces, with options for custom backlighting and key labeling tailored to your specific project requirements.

Engineered for high-frequency use and demanding environments, this heavy-duty keyboard excels where standard plastic keyboards fall short. It offers superior resistance to impact, scratches, and liquid spills, and is built to withstand long-term, intensive operation. The integrated touchpad—complete with left and right-click buttons—saves valuable installation space, eliminating the need for an external mouse.

Certified to the IK08 impact standard, this keyboard is designed to withstand external mechanical shocks and intentional vandalism, making it an ideal input solution for unattended self-service terminals located in public areas.

The entire front panel is crafted from solid SUS304 stainless steel, providing a durable, robust surface that is easy to wipe down and keep clean.

The front panel is fully sealed to an IP65 rating, effectively preventing the ingress of dust, water splashes, and cleaning agents into the device.

This keyboard is designed for rear-panel (embedded) mounting, allowing for secure installation into cabinets, kiosk enclosures, or control consoles.

The keyboard-touchpad unit features pre-drilled mounting holes on the rear, allowing for secure installation from the back while ensuring a smooth, aesthetically pleasing front surface.

The USB version supports Windows, Linux, and Android operating systems with plug-and-play functionality. The PS/2 version is designed for legacy industrial host systems that still utilize PS/2 ports.

The cable length for the keyboard-touchpad unit can be customized to meet specific requirements. Additionally, shielded cables are available as an option to minimize electromagnetic interference in industrial workshop environments.

In devices such as payment terminals, information kiosks, and automated ticketing machines, this keyboard-touchpad unit is built to withstand frequent, heavy public use without sustaining damage.

Constructed from SUS304 stainless steel, the unit features a smooth, easy-to-clean surface, meeting the strict hygiene standards required for medical diagnostic and monitoring equipment.

Equipped with dustproof and splash-proof capabilities, this keyboard-touchpad unit ensures reliable operation when integrated into factory control panels and automated workshop equipment.

Keyboard Touch Pad Specifications

Specification	Parameter
Key Life Cycle	>2,000,000 strokes
Interface	USB
Key Size	14142.0mm
Key Travel	0.45mm
Key Actuation Force	2N +/-0.1N (contact force)
Mounting Method	Rear mount (install from bottom to top)
Net Weight	0.55Kg
Gross Weight	0.7Kg
Operating Temperature	-20℃ ~ 65℃ (Relative Humidity: 20%~85%, Atmospheric Pressure: 60~106Kpa)
Storage Temperature	-30℃ ~ 85℃ (Relative Humidity: 20%~90%, Atmospheric Pressure: 60~106Kpa)
MTBF (Mean Time Between Failures)	>20,000 hours
MTTR (Mean Time To Repair)	<30 minutes

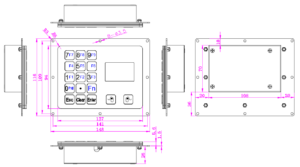

Keyboard Touch Pad Structural Dimension Drawing
