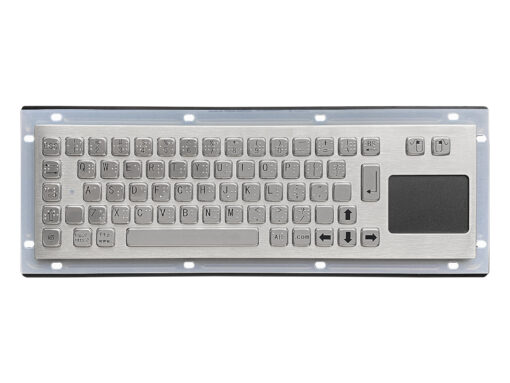

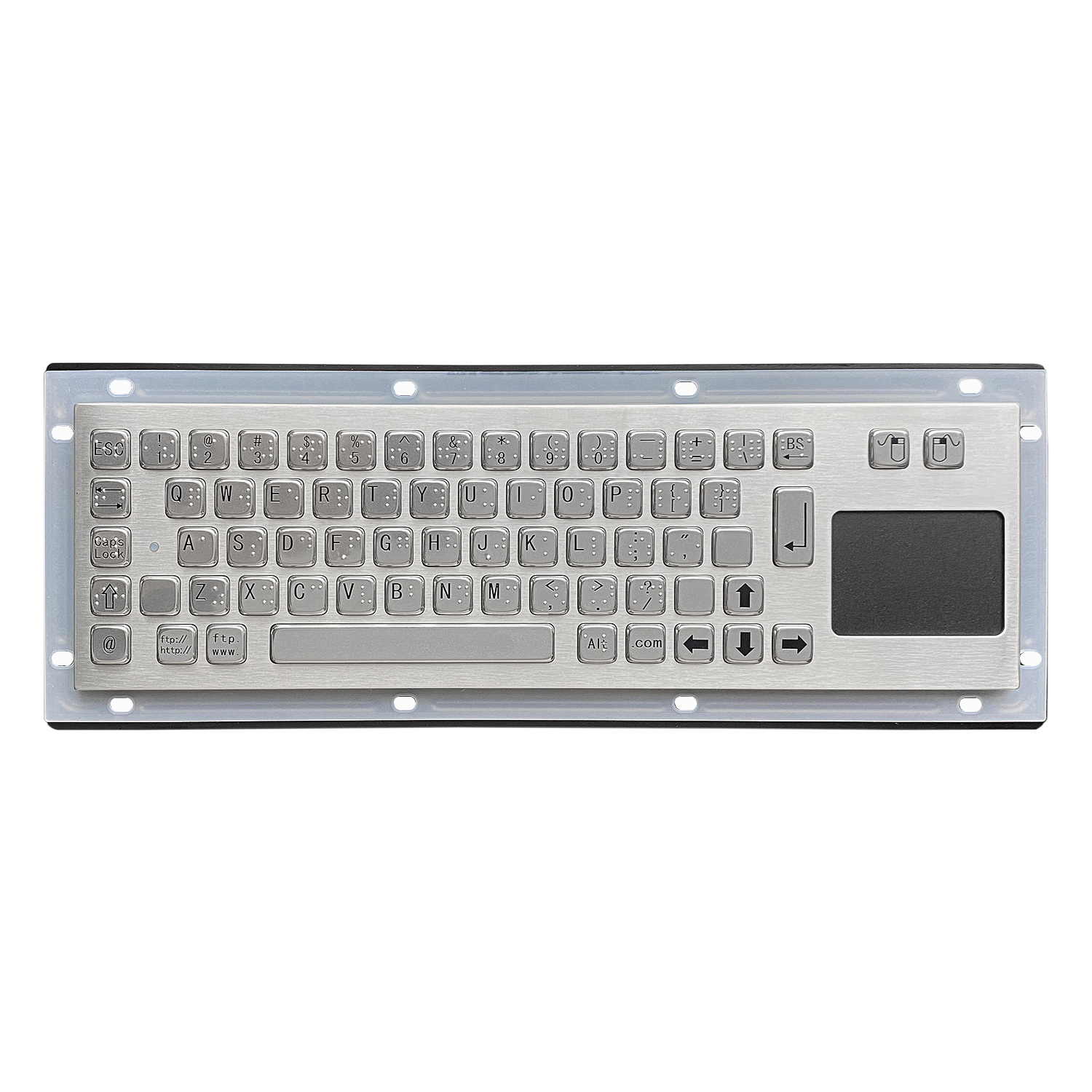

Metallic keyboard with braille
67 keys metallic keyboard with braille feature:
Dimension ：
Front Panel: 330*100 mm
Overall : 354*124*46.5 mm
67 keys metallic keyboard with braille features:
Stainless Steel Buttons
Compact layout, customized for free
Laser or etching procedure for key labeling optional
Braille button key
Durability≥2 million
Rugged stainless steel industrial metallic keyboard with braille keyboard.
IP65 waterproof & vandal-proof, rear panel mount , support USB ,Other interfaces are customizable,used for kiosk & access control.
Industrial metallic keyboard with braille keyboardmodel:KY-PC-NT3(BR)
67 keys industrial usb metallic keyboard with braille keyboard feature:
- Industrial numeric keypad made of 304 stainless steel, sturdy & anti-damage
- IP65 waterproof, dustproof, anti-corrosion for harsh working environment
- Panel mount installation, stable input, 2,000,000+ keystroke lifetime
- Available USB,PS2 interface
- layout customization
Industrial numeric usb key pad Application:
Access control & door entry systems
Self-service payment kiosks
Vending machines & car wash equipment
Fuel dispensers & parking terminals
Industrial control cabinets & machine operation panels
Banking, medical & public outdoor terminal devices
Widely used in kiosk, access control, vending machine, industrial terminal
67 Keys Industrial usb key pad mechanical/electrical data：
| Operating Voltage | 5V±5% |
| Operating Current | <100mA |
| Button Lifespan | >2000000 |
| Product Interface | USB / PS/2 |
| Supported Operating systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Button Size | 14*14*4.5/28*14*4.5/100*14*4.5mm |
| Button travel | 1.5mm |
| Button Pressure | 1.2N+/-0.1N（Contact Operating Force） |

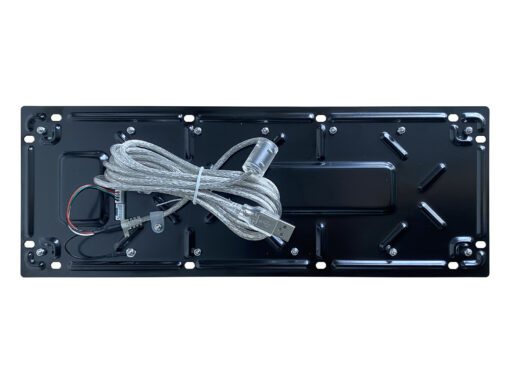

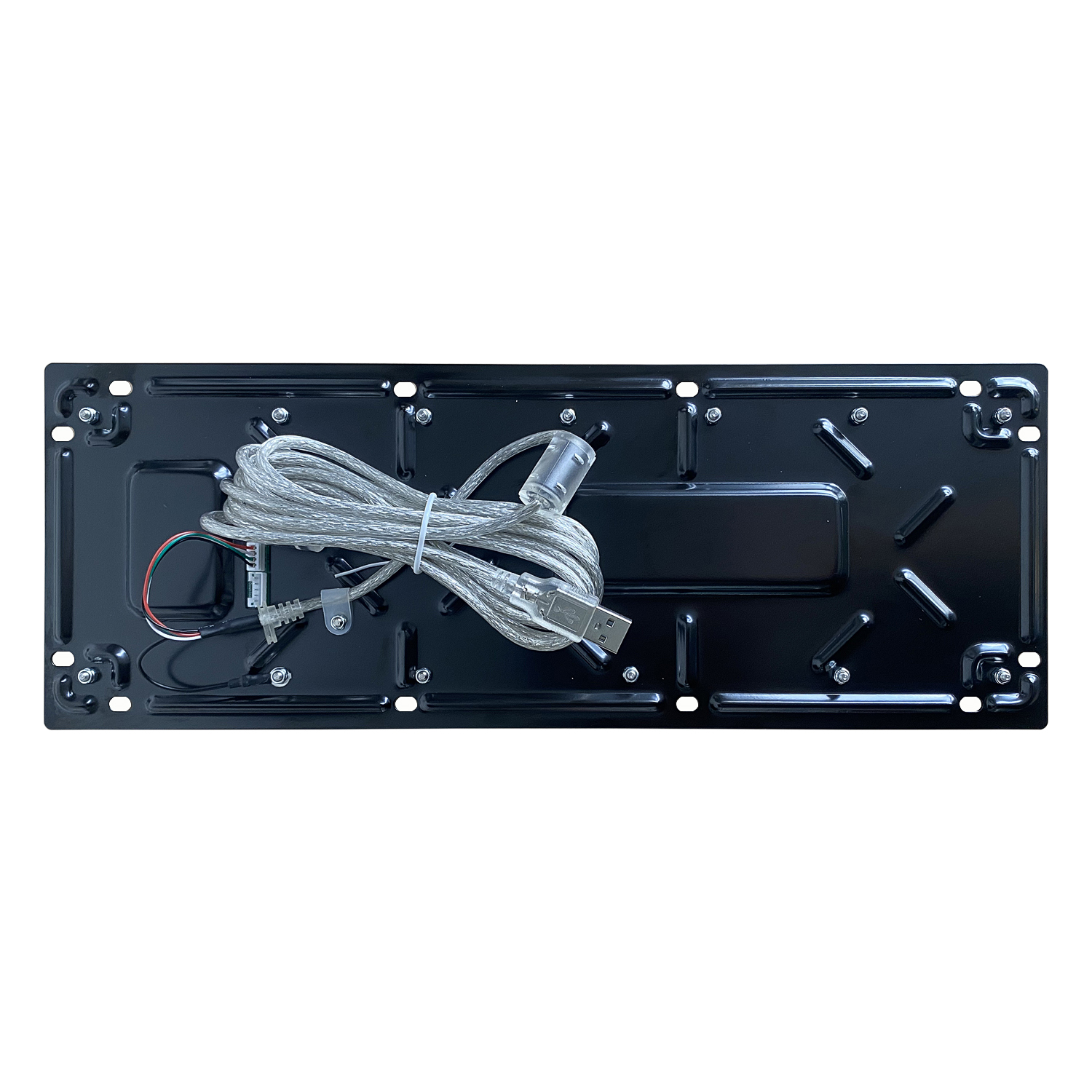

| Installation method | From bottom to top, the base plate is fixed and assembled. |
| Net Weight | 1Kg |
| Gross Weight | 1.15Kg |
| Operating Temperature | -20℃~65℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
| MTBF | >20000 hours |
| MTTR | <30 minutes |
