KY-PC-NT4-BR
Self service ticket vending machine keyboard with thouchpad
Dimension ：
- Front Panel: 330*100 mm
- Overall : 354*124 mm
Features:
- Braille metal keyboard
- Touchpad diameter: 65x49mm
- Keys：67
- Stainless steel keyboard, water&vandal proof design
- Buttons made of stainless steel
- Waterproof and Vandalproof
- Laser or Etching procedure for key labeling optional
- Customized layout for free

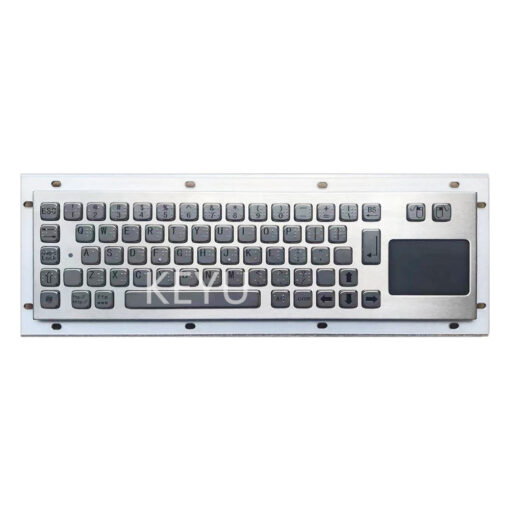

Metal Braille Keyboard
Mechanical / Electrical Data:
| Power supply | 5V±5% |
| Working current | <60mA |
| Durability | >2 million |
| Product interface | USB / PS/2 |
| Compatible With Systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key size | 14*14*2/14*28*2/100*14*2mm |
| Key Trip | 1.5mm |
| Key strength | 1.2N+/-0.1N(contact force) |

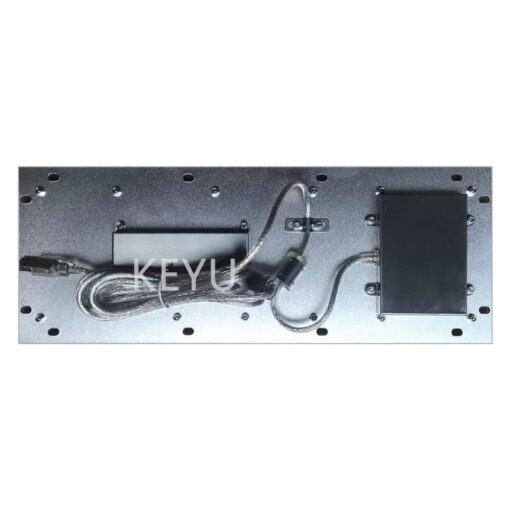

| Mounting Way | Rear mounting or Front mounting |
| Net weight | 1Kg |
| Gross weight | 1.15Kg |
| Operation Temperature | -10℃~45℃（Relative humidity 20%~85% /atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity 20%~90% /atmospheric pressure 60~106Kpa） |
Applications: kiosk solution, Medical equipment, Industrial facilities, prisons, food service,oil fields,used in the field of financial equipment, communication equipment
KEYU Provides Various Keyboard:Kiosk Metal Touchpad、Kiosk Metal Keyboard With Trackball、Kiosk Metal Keypad、Kiosk Metal Pinpad、Kiosk Metal Membrane Keyboard
