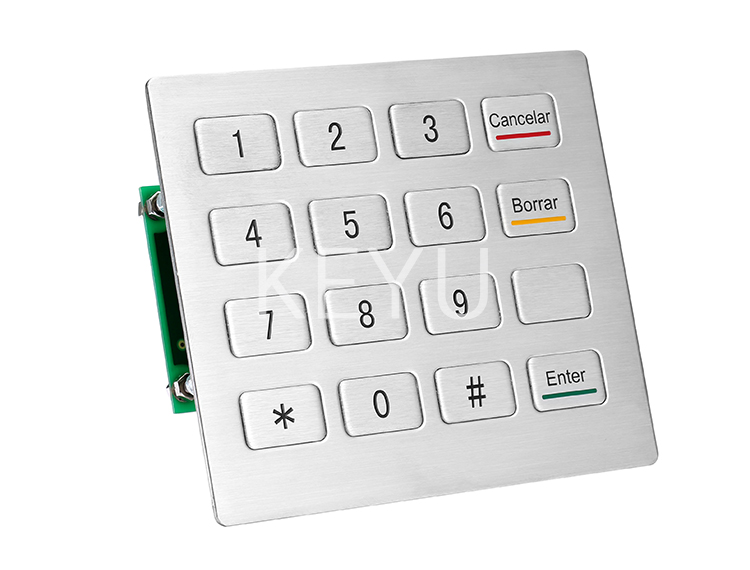

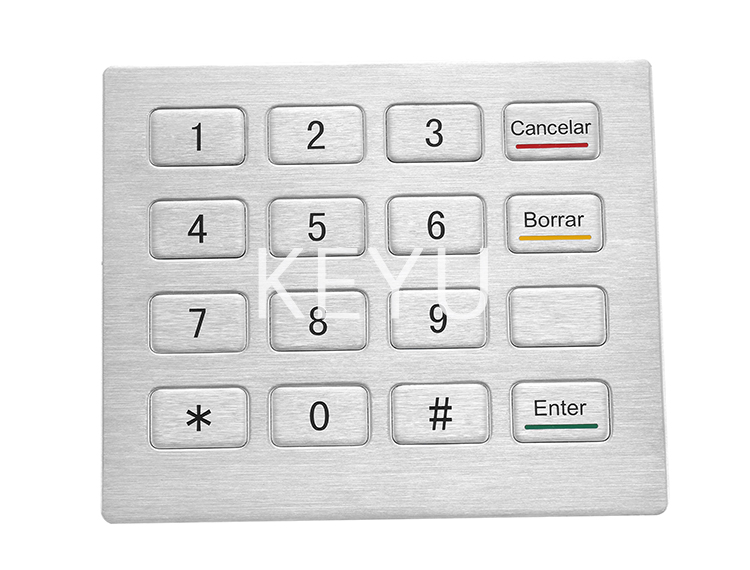

KY2116R
Dimension ：
- Front Panel: 116*97.5 mm
- Overall : 116*97.5 mm
Features:
- stainless steel Buttons, water&vandal proof design
- Compact layout, customized for free
- Laser or etching procedure for key labeling optional
- Durability≥2 million
Mechanical / Electrical Data:
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB，PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 220g±20g |
| Packing Dim | 160 *160*60 mm |
| Operation Temperature | -20℃~55℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa） |
| Compatible With Systems | Window XP、Window 7、Window 10、Linux、Ubuntu、Android |
| Approval | RoHS、IP65、FCC、CE |
Application: Ticket Vending Machine, Kiosk, Parking Solution.
